Dawb Fused Alumina
Dawb fused alumina yog high-purity, hluavtaws abrasive khoom ua los ntawm txhuas oxide. Nws yog tsim los ntawm tib cov txheej txheem yooj yim xws li xim av fused alumina, tab sis nrog qee qhov kev hloov pauv hauv cov khoom siv raw thiab cov txheej txheem ua haujlwm uas ua rau muaj qib siab dua ntawm purity thiab cov qauv crystalline tshwj xeeb. Qhov no ua rau dawb fused alumina tshwj xeeb tshaj yog tsim rau cov ntawv thov uas yuav tsum tau ua kom huv, zoo abrasive.
- Product Introduction

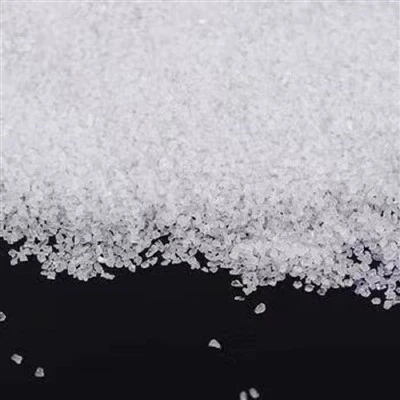

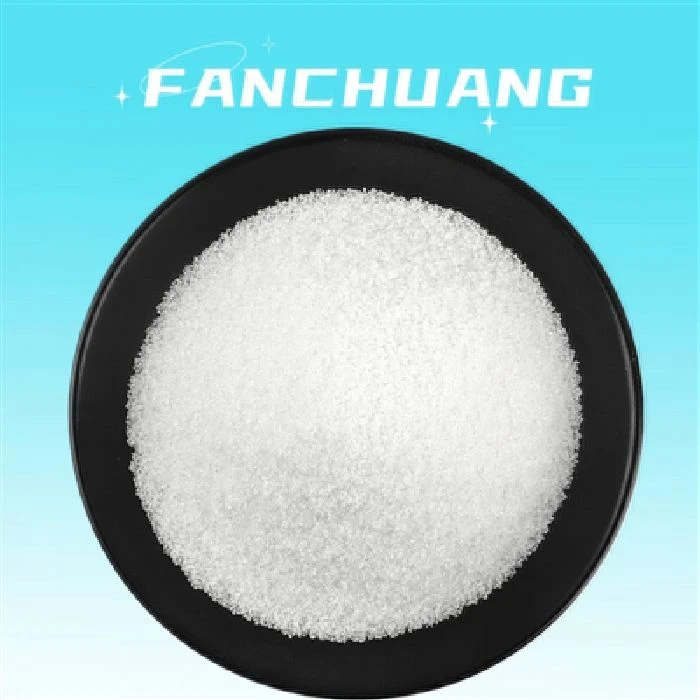

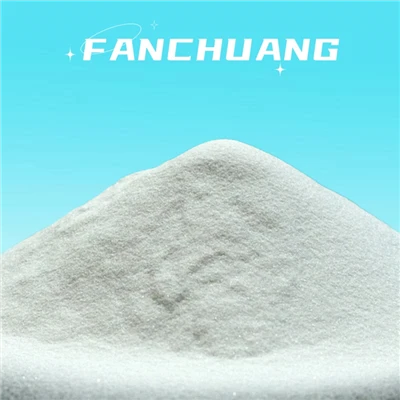

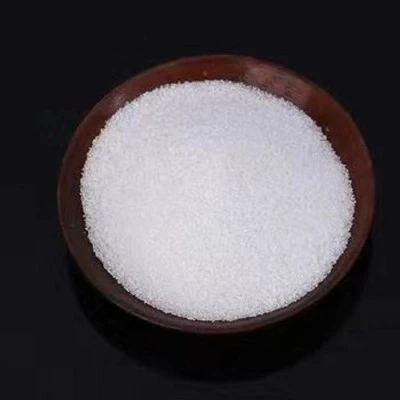

Dab tsi yog Dawb Fused Alumina
Dawb fused alumina yog high-purity, hluavtaws abrasive khoom ua los ntawm txhuas oxide. Nws yog tsim los ntawm tib cov txheej txheem yooj yim xws li xim av fused alumina, tab sis nrog qee qhov kev hloov pauv hauv cov khoom siv raw thiab cov txheej txheem ua haujlwm uas ua rau muaj qib siab dua ntawm purity thiab cov qauv crystalline tshwj xeeb. Qhov no ua rau dawb fused alumina tshwj xeeb tshaj yog tsim rau cov ntawv thov uas yuav tsum tau ua kom huv, zoo abrasive.
Vim Li Cas Xaiv Peb
Pab neeg tshaj lij
Peb muaj ib pab pawg neeg txawj ntse thiab paub txog cov kws tshaj lij uas paub zoo txog cov cuab yeej technology tshiab thiab cov qauv kev lag luam. Peb pab neeg mob siab rau kom ntseeg tau tias peb cov neeg siv khoom tau txais kev pabcuam zoo tshaj plaws thiab kev txhawb nqa tau.
Cov nqi sib tw
Peb muab peb cov khoom ntawm tus nqi sib tw, ua rau lawv pheej yig rau peb cov neeg siv khoom. Peb ntseeg tias cov khoom lag luam zoo yuav tsum tsis txhob tuaj ntawm tus nqi, thiab peb siv zog ua kom peb cov khoom siv tau rau txhua tus.
Kev paub nplua nuj
Muaj lub koob npe nrov ntev hauv kev lag luam, uas ua rau nws sawv tawm ntawm nws cov neeg sib tw. Nrog rau ntau xyoo ntawm kev paub, lawv tau tsim cov txuj ci tsim nyog kom tau raws li lawv cov neeg siv khoom xav tau.
Yooj yim thiab yooj yim
Lub tuam txhab tau tsim cov kev lag luam thoob ntiaj teb los muab cov kev pabcuam zoo rau cov neeg siv khoom zoo thiab yooj yim.
Kev ruaj ntseg zoo
Nyob rau hauv cov nqe lus ntawm kev ruaj ntseg zoo, lub tuam txhab nruj me ntsis raws li cov qauv thiab cov qauv ntawm kev lag luam zoo system. Txais kev lag luam-cov cuab yeej kuaj xyuas kom paub meej cov khoom zoo thiab lub koob npe zoo.
Cov neeg siv khoom txaus siab
Muab cov kev pabcuam tomqab muag tuaj yeem txhim kho cov neeg siv khoom txaus siab los ntawm kev ua kom cov neeg siv khoom xav tau txawm tias tom qab kev yuav khoom. Qhov no tuaj yeem ua rau muaj kev ntseeg siab rau cov neeg siv khoom ntxiv thiab cov lus xa mus rau qhov ncauj zoo.
Zirconia Alumina Abrasive Belt
Hnav resistant, tsis yooj yim rau tawg
Haum rau stainless hlau sib tsoo thiab polishing
Siab zog thiab muaj zog tensile kuj
zirconium corundum abrasive siv.
Fiberglass Backing Phaj Rau Flap Disc
Tsis muaj kua nplaum nkag
High purity fiberglass mesh nrog cob
Hom 27, hom 28, hom 29
Haum rau ntau yam abrasive thiab sib tsoo discs.
Kev xaiv cov khoom zoo
Sib tsoo thiab ua tiav hauv ib kauj ruam
Muaj ntau specification yuav tsum xaiv
High-quality yas thaub qab
Peb siv Raymond zeb tshuab ntawm Hongxing hom los ua sodium cryolite, tso zis thiab zoo yog assured, customized grit thiab packing yog txais, tag nrho cov ntau lawm raug kuaj los ntawm peb tog kuaj department ua ntej xa, tus qauv dawb yuav muab.
CSW yog nrov thiab dav siv nyob rau hauv Resin log kev lag luam, peb muaj profissional technology pab neeg los txhawb yuav ua li cas siv CSW zoo, CSW yog muag zoo nyob rau hauv domestic kev ua lag luam nyob ntawm seb peb cov nqi sib tw, dawb mus sib piv tau txais tos.
Daim ntawv thov tshiab ntawm K2SO4 tau txais tag nrho los ntawm kev sib tsoo log manufacturers, nws tuaj yeem txhim kho qhov hnav tsis kam ntawm lub log / txo qhov kub hnyiab hauv workpiece / txwv tsis pub kub tawg thiab txhim kho kev ua haujlwm txiav.
Peb cov hmoov hlau pyrite ua rau cov pob zeb sib tsoo lub log muaj zog dua, ntev ntev, txiav tob dua thiab ua tau zoo dua, peb pab neeg ua haujlwm paub txog kev siv cov ntaub ntawv zoo hauv kev sib tsoo / txiav kev lag luam, kev kuaj dawb yog txais tos.

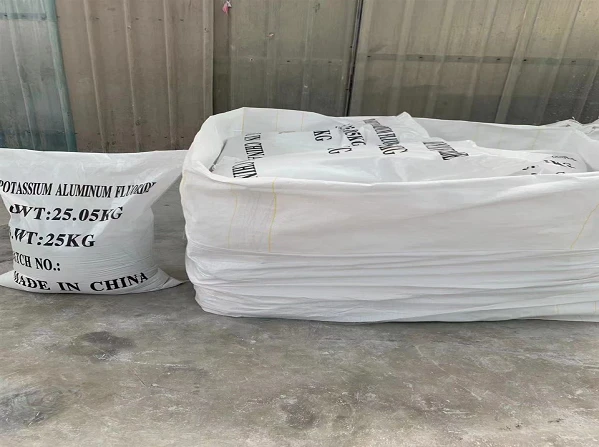

Peb cov qib zoo raw khoom ntawm Potassium Aluminium Fluoride yog los ntawm cov neeg muag khoom muaj npe tshaj plaws ntawm kev lag luam, peb qhov zoo tshaj plaws yog qib siab thiab ruaj khov, tswj tau tuaj yeem ua tau raws li cov neeg siv khoom xav tau ntau yam, feem ntau ntawm cov neeg siv khoom yog los ntawm kev lag luam abrasive, peb muag txhua xyoo uas muab rau txiav & sib tsoo cov nroj tsuag muaj ntau tshaj 1500tons, peb pab neeg technology paub yuav ua li cas siv nws zoo heev, nws yog heev pab tau nyob rau hauv sharpness thiab lub neej rau txiav & sib tsoo lub log.
Qhov Zoo ntawm Dawb Fused Alumina hauv Daim Ntawv Thov Kev Lag Luam
Siab purity
Dawb fused alumina yog tsim los ntawm high-zoo txhuas oxide, uas ua rau ib yam khoom uas muaj impurities tsawg heev, ua rau nws zoo tagnrho rau daim ntaub ntawv uas purity tseem ceeb heev.
Hardness
Nws yog lub npe hu rau nws lub siab Mohs hardness, ua rau nws haum rau abrasive daim ntaub ntawv uas yuav tsum tau txiav, sib tsoo, los yog polishing nyuaj cov ntaub ntawv.
Abrasive zog
Dawb fused alumina muaj cov khoom zoo heev, nrog cov ntse ntse thiab ruaj khov, ua kom zoo rau cov hlau, ceramic, thiab iav sib tsoo thiab polishing.
Siab melting point
Nws muaj lub siab melting point, uas ua rau nws resistant rau high-kub daim ntaub ntawv xws li refractories thiab ceramics.
Thermal stability
Nws nthuav tawm thermal stability zoo heev thiab tuaj yeem tiv taus cov txheej txheem kub kub yam tsis muaj qhov cuam tshuam loj.
Hluav taws xob rwb thaiv tsev
Nws muaj cov khoom siv hluav taws xob zoo insulating, ua rau nws muaj txiaj ntsig zoo rau kev siv hauv kev lag luam hluav taws xob.
Tsawg friability
Dawb fused alumina muaj friability tsawg, uas txhais tau hais tias cov nplej tuav lawv cov npoo ntse thiab txiav efficiency ntev dua.
Tswj particle loj
Nws tuaj yeem tsim nyob rau hauv ntau qhov ntau thiab tsawg kom haum rau kev sib txawv abrasive thiab kev siv tshuab.
Qhov txawv ntawm Brown Fused Alumina thiab Dawb Fused Alumina
Cov khoom sib txawv
Cov khoom siv raw ntawm xim av corundum yog bauxite, ntxiv rau anthracite thiab hlau filings. Cov khoom siv raw ntawm corundum dawb yog alumina hmoov.
Kev siv sib txawv
Brown corundum tuaj yeem siv los ua cov ceramics, resin high-consolidation abrasive cov cuab yeej, sib tsoo, polishing, sandblasting, precision casting, thiab lwm yam. Dawb corundum yog tsim rau kev sib tsoo zoo-grained abrasives xws li high-carbon steel, high-speed steel thiab stainless hlau. Nws tseem tuaj yeem siv rau precision casting thiab cov khoom siv refractory siab heev.
Cov ntsiab lus alumina sib txawv
Cov ntsiab lus alumina ntawm xim av corundum yog 94% -75%. Cov ntsiab lus alumina ntawm dawb corundum yog ntau dua 99.2%.
Sib txawv hardness
Lub qub muaj ib tug hardness ntawm 8.9, uas yuav siv tau los tshem tawm burrs rau saum npoo ntawm hardware yam xws li stainless hlau, carbon hlau, txhuas alloy, thiab lwm yam .; lub tom kawg muaj ib tug hardness ntawm 9. Pi Feng, thiab lwm yam, muaj cov nyhuv polishing ntawm qhov chaw, thiab nws yog nruab nrab polishing abrasive.
Daim ntawv thov ntawm Dawb Fused Alumina
Precision sib tsoo
Dawb fused alumina feem ntau yog siv rau hauv kev sib tsoo daim ntawv thov rau kev txiav thiab tsim ntau yam ntaub ntawv, suav nrog hlau, ceramics, thiab iav. Nws muab ib tug huv thiab meej tiav.
Lapping thiab polishing
Nws yog siv rau lapping thiab polishing kev lag luam hauv kev lag luam xws li optics, electronics, thiab kev tsim cov khoom siv semiconductor, qhov zoo tshaj plaws, tsis muaj khawb yog qhov tseem ceeb.
Abrasive blasting
Dawb fused alumina yog siv rau hauv abrasive blasting rau tu thiab npaj cov chaw hauv kev siv xws li aerospace, tsheb, thiab hlau fabrication. Nws cov purity siab txo qhov kev pheej hmoo ntawm kev kis kab mob.
Refractories
Nws yog siv los ua raw khoom nyob rau hauv zus tau tej cov zoo refractory bricks thiab cov duab vim nws high-temperature kuj thiab purity.
Ceramic thiab composite cov ntaub ntawv
Dawb fused alumina feem ntau yog siv los ua cov khoom siv dag zog hauv kev tsim cov ceramics siab heev, cov khoom sib xyaw, thiab cov coatings-resistant coatings.
Nthuav thiab qhuav blasting
Nws yog tsim rau ob qho tib si ntub thiab qhuav blasting kev ua haujlwm, muab ntau yam hauv kev npaj nto thiab tu daim ntaub ntawv.
Cov hniav nyiaj hniav kub thiab lub pov haum txiav
Hauv kev lag luam hniav nyiaj hniav kub thiab gemstone, dawb fused alumina yog siv rau kev txiav, shaping, thiab polishing precious pob zeb vim nws precision thiab tsis muaj xim paug.
Dawb Fused Alumina Manufacturing txheej txheem
Kev npaj ua ntej qhib lub qhov cub
Txuas cov electrode: Tshuab qhov chaw sib cuag thiab ceev cov xov.
Kho qhov ntev ntawm lub electrode: Lub electrode tsuas yog nyob rau hauv kev sib cuag nrog lub arcing coke, uas yuav tsis cuam tshuam rau hauv thiab tawm ntawm lub cub tawg los yog tipping.
Ntsuas qhov deb ntawm electrode thiab qhov kev ncua deb ntawm cov electrode thiab cov phab ntsa ntawm lub cub tawg.
Measure the insulation of the secondary conductive system: The resistance value of the insulation part>0.5MΩ.
Tshawb xyuas cov khoom siv xws li lub tshuab hluav taws xob hauv lub cev, kev nqa hluav taws xob, thiab kev pub mis, nrog rau dej, cua kav, li qub, thiab lwm yam.
Qhib lub qhov cub
Tso lub arcing coke: Qhov luaj li cas ntawm lub arcing coke yog 30-50mm. Nws muaj peb txoj hauv kev los tso nws:
Khoom daim duab peb sab: loj npaum li cas pib coke, tsis yooj yim rau tawg lub arc, siv nyob rau hauv nruab nrab.
Hollow daim duab peb sab: me me ntawm pib coke, yooj yim rau rhuav lub arc, tsis siv ntau.
Crystal puab: me me ntawm arc pib coke, nrawm arc pib, yooj yim rau tawg arc, siv rau qhov cub qhib.
Kev xa hluav taws xob
Arc pib: Thaum tam sim no nce mus rau 20-30%, nce bauxite arc siab, thiab thaum lub sij hawm thauj khoom tam sim no nce mus txog 80%, cov khoom tuaj yeem muab ntxiv rau hauv smelting.
Smelting
Nws yog feem ntau muab faib ua ob txheej txheej txheej txheej rauv thiab txoj kev qhib rauv (saib lub ntsiab lus thib peb ntawm cov txheej txheem xim av corundum smelting txheej txheem thiab cov yam ntxwv) rau "tswj" kev ua haujlwm thiab kev ntsuas qhov cub.
Tswj
Feem ntau tso tseg tsis pub noj, tswj cov electrode kom sawv, thiab tsis txhob cuam tshuam me me. Qhov tshwm sim cov tshuaj tiv thaiv thaiv lossis "sniff block" tom qab ua tiav. Txhawm rau tiv thaiv qhov tshwm sim ntawm kev ncua.
Kev kho kom zoo
Ua ntej hloov mus rau refining, kho qhov sib piv ntawm cov khoom xyaw thiab nce cov pa roj carbon zoo.
Tsis pub noj, nyias txheej txheej, tsis tshua muaj hluav taws xob, ua haujlwm siab tam sim no.
Ncuav (tawm) lub qhov cub
Pib lub electrode ua ntej, thiab ces pib lub electrode thaum tam sim no tsis tsawg tshaj li 5000A.
Lub qhov cub tawg tau npaj kom tau txais pob khoom 0.5h ua ntej, thiab cov dej txias tau muab tua.
Thaum muab pov tseg, ua raws li lub hauv paus ntsiab lus ntawm qeeb ua ntej, nrawm dua, thiab qeeb kawg.
Cia me ntsis yaj kom yooj yim rau tom ntej arc pib.
Ua tib zoo saib lub tipping lub kaum sab xis kom tiv thaiv lub nozzle los ntawm kev tsoo lub pob crimping.
Tom qab nchuav thiab rov pib dua, thaum lub electrode yog 200-500mm deb ntawm cov yaj, lub hwj huam mov yuav pib.
Cov teeb meem xav tau kev saib xyuas
Cov txheej txheem smelting, tsis muaj qhov tshwm sim txawv txav, xa tag nrho cov khoom raws li qhov xav tau, thiab txo cov kev ua haujlwm electrode.
Lub cub tawg yuav tsis raug tshem tawm ntev, thiab cov khoom siv hluav taws xob tuaj yeem raug yuam kom tshem tawm tsis pub dhau 30-40 feeb.
Tom qab lub cub hluav taws xob muaj cov tshuaj tiv thaiv loj thiab cov khoom siv raug puas tsuaj, lossis yog tias lub zog tawm mus ntev, ua tib zoo saib xyuas cov khoom siv hluav taws xob.
Yog tias cov electrode daig, koj yuav tsum tau tom qab ua ntej.
Nco ntsoov thiab khiav raws li tus txheej txheem ntawm tag nrho cov load.
Dawb Fused Alumina Kev Lag Luam Loj tau muaj nuj nqis ntawm USD 825.93 Billion hauv 2023 thiab xav tias yuav ncav cuag USD 961.83 Billion los ntawm qhov kawg ntawm 2030 nrog CAGR ntawm 2.20% Thaum Lub Sijhawm Huab Cua 2024-2030.
Nyob rau hauv kev lag luam abrasive thiab refractory cov ntaub ntawv, lub lag luam dawb fused alumina (WFA) yog ib qho chaw tshwj xeeb uas tsom rau kev tsim, kev faib tawm, thiab kev siv cov high-purity aluminium oxide nplej uas txawv los ntawm lawv cov xim dawb. High-grade aluminium oxide raw cov ntaub ntawv yog melted nyob rau hauv hluav taws xob arc rauv los tsim dawb fused alumina, uas muaj ib tug crystalline qauv uas yog remarkably robust, puas-resistant, thiab thermally ruaj khov. Qhov tshwj xeeb zoo ntawm dawb fused alumina yog siv nyob rau hauv ntau yam kev lag luam sectors, xws li electronics, refractories, ceramics, deg kho, thiab abrasives.
Nyob rau hauv hluav taws xob arc rauv uas rhuab mus rau qhov kub siab tshaj 2000 degrees Celsius, alumina raw cov ntaub ntawv-feem ntau high-purity bauxite los yog alumina-nplua nuj industrial by-products yog fused los ua dawb fused alumina. Raws li cov txheej txheem, crystalline qauv nrog cov qib qis, xim dawb, feem ntau yog ntau dua 99.5% aluminium oxide cov ntsiab lus) yog tsim.
Thaum lub sijhawm tsim khoom, kev tswj xyuas meej yog tsim los ntawm kev faib tawm ntawm qhov ntau thiab tsawg, tshuaj lom neeg muaj pes tsawg leeg, thiab cov yam ntxwv ntawm lub cev zoo li toughness, hardness, thiab thermal conductivity kom ua tiav cov qauv kev lag luam thiab cov neeg siv khoom tshwj xeeb.
Dawb Fused Alumina yuav tsum tau them sai sai rau cov ntsiab lus hauv qab no
Alumina cov ntsiab lus
Alumina cov ntsiab lus ncaj qha txiav txim qhov xwm ntawm Dawb Fused Alumina thiab tus nqi ntawm cov nroj tsuag.
Cov ntsiab lus sodium
Todium oxide yuav tsim cov sodium aluminate siab hauv White Fused Alumina smelting, uas cuam tshuam rau cov khoom zoo.
Qhov ntom ntom
Qhov ntom ntom tuaj yeem cuam tshuam cov particle ntom, particle zoo thiab particle loj muaj pes tsawg leeg rau qee yam.
Dawb
Qhov ntsuas ntawm kev xav txog qhov tsos thiab xim ntawm Dawb Fused Alumina.
Particle loj faib
Cov ntxhib dhau los yog cov khoom zoo heev yuav muaj qhov sib txawv.
Particle puab
Daim ntawv thov sib txawv siv cov ntse ntse los yog sib npaug lossis cov duab tiaj tus.
Dab tsi yog Cov Qauv ntawm Dawb Fused Alumina
Nyob rau hauv kev lag luam, dawb fused alumina feem ntau muab faib ua plaub hom: granular xuab zeb, segmented xuab zeb, nplua hmoov, thiab micro hmoov. Tsis yog ib tus neeg sab hauv, Kuv yeej tsis tuaj yeem categorize qhov no, Kuv ib txwm ruam tsis tuaj yeem paub meej meej. Tom ntej no, cia peb muab cov ncauj lus kom ntxaws:
Dawb fused alumina particle loj xuab zeb tuaj yeem raug xa mus rau ib qho xuab zeb, feem ntau xa mus rau F12, F30, F54, F90, F100, F220 hom dawb fused alumina. Feem ntau siv rau hauv kev lag luam abrasive, nws kuj tseem siv tau rau kev tsim thiab ua cov sib tsoo log thiab qee cov ntaub ntawv refractory.
Dawb fused alumina seem xuab zeb feem ntau yog hais txog dawb fused alumina khoom nrog qhov ntau thiab tsawg ntawm 1-0mm, 3-1mm, 5-3mm, thiab 8-5mm. Dawb fused alumina xuab zeb muaj qhov kub tsis kam, siab hardness, thiab corrosion kuj, uas tuaj yeem siv rau steelmaking. Lub slag kuj ntawm dawb fused alumina xuab zeb kuj zoo heev, yog li nws kuj siv tau los ua cov khoom siv ceramic.
Cov hom dawb fused alumina nplua hmoov yog 325-0 mesh, 240-0 mesh, 220-0 mesh, thiab 180-0 mesh, uas feem ntau yog cov xuab zeb sib xyaw vim lawv muaj cov alumina dawb fused. hmoov zoo nrog qhov loj me ntawm 325 lossis ntau dua. Feem ntau yog siv rau kev sib tsoo thiab polishing.
Txawm hais tias tsuas muaj ib lo lus sib txawv ntawm dawb fused alumina micro hmoov thiab dawb fused alumina hmoov zoo, nws yuav tsum tsis txhob tsis meej pem. Cov qauv ntawm cov dawb fused alumina micro hmoov yog ib qho me me, nrog rau qhov loj me me xws li W63, W20, W15, W10, W7, W5, thiab lwm yam. Cov txheej txheem ntawm cov hmoov micro hmoov muaj ntau thiab nyuaj, yog li tus nqi kuj siab. . Feem ntau yog siv rau ntub lossis qhuav sandblasting, piv txwv li kev ua thiab tsim cov khoom siv refractory.
Yuav Ua Li Cas Khaws Dawb Fused Alumina Fine Powder
Dawb fused alumina hmoov zoo yog zoo heev rau casting hmoov thiab refractory castable. WFA hmoov 200 mesh, 220 mesh, thiab 325 mesh yog ib txwm rau cov ntawv thov. Kev noj ntau ntau yog li ntau tus neeg siv yuav ib pawg loj ntawm cov khoom. Yog li nws yuav tsum tau them sai sai rau kev khaws cia ntawm cov hmoov:
Nco ntsoov khaws qhov cua thiab qhuav
Tsis txhob muaj av noo nyob rau hauv lub warehouse. Cov dej noo yuav ua rau WFA hmoov agglomerate los thaiv tom qab nqus cov av noo los ntawm huab cua.
Dej vapor yuav hydrate, hydrolyze, thiab carbonic acid dawb fused nplua hmoov. Cov av noo ib puag ncig ua rau dej me ntsis, whitening, huab cua, yaig, xeb daj, thiab lwm yam kev hloov pauv pathological.
Dustless xwm txheej
Plua plav yuav ua rau cov hmoov dawb huv WFA. Kev khaws cia yuav tsum tsis txhob muaj plua plav rhiav thiab warehouses.
Pob cais tawm ntawm huab cua
Dawb fused alumina hmoov cov chaw muag khoom ib txwm ua lub hnab yas ua lub hnab sab hauv thiab kaw nws. Yog tias siv ib feem ntawm lub hnab, cov neeg siv yuav tsum muab nws kaw dua. Qhov ntawd yuav ua rau WFA cais tawm ntawm huab cua.
Tsis txhob npog cov ntaub pua plag thiab sundries rau lub sijhawm ntev
Txhawm rau kom cov corundum dawb ventilate, nws yog ib qho tsim nyog yuav tsum tsis txhob npog lub hnab dawb fused alumina nrog cov ntaub pua plag thiab sundries rau lub sijhawm ntev, txwv tsis pub, cov dej noo tsis tuaj yeem cuam tshuam los ntawm qhov pores. Dawb corundum yuav raug cuam tshuam los ntawm cov dej noo vim cov dej noo ntau dhau.

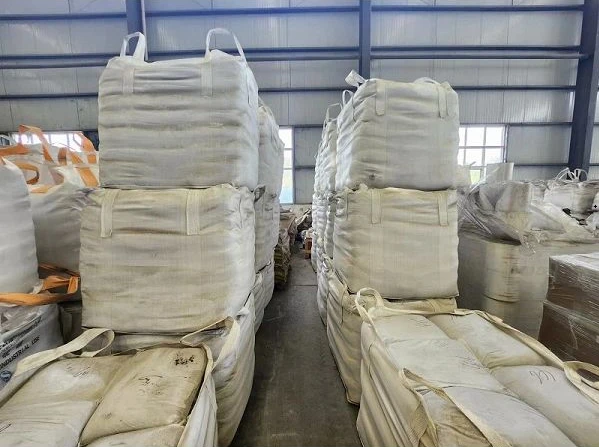

Peb lub Hoobkas
Zhengzhou Finchuang Science thiab Technology Co., Ltd. yog nyob rau hauv Zhengzhou City, Henan Province-qhov chaw ntawm Tuam Tshoj tus abrasive thiab sib tsoo muaj. Peb yog cov chaw tsim khoom ntawm abrasive thiab sib tsoo log. Ntau tshaj li kaum xyoo txoj kev loj hlob, peb tau maj mam tsim ntau ntau lawm los npog abrasive thiab sib tsoo industrial. Peb tau mus txog theem ua ntej hauv kev lag luam nyob rau hauv cov nqe lus ntawm qhov zoo ntawm cov khoom siv raw thiab cov khoom pabcuam, kev ua haujlwm ntawm cov cuab yeej siv tshuab, thiab cov txheej txheem tsim khoom, Peb lub tuam txhab tsis yog tsuas yog ib tus neeg tau txais kev pom zoo ntawm cov cuab yeej paub zoo hauv tsev. manufacturers, tab sis kuj tau tsim kev koom tes nrog lub ntiaj teb no-renowned abrasive cuab yeej tuam txhab uas muag nyob rau hauv Middle East thiab Southeast Asia. Nrog cov khoom ruaj khov zoo, khoom siv raws sijhawm, thiab kev txhawb nqa, peb tau txais kev qhuas zoo los ntawm cov neeg siv khoom.
